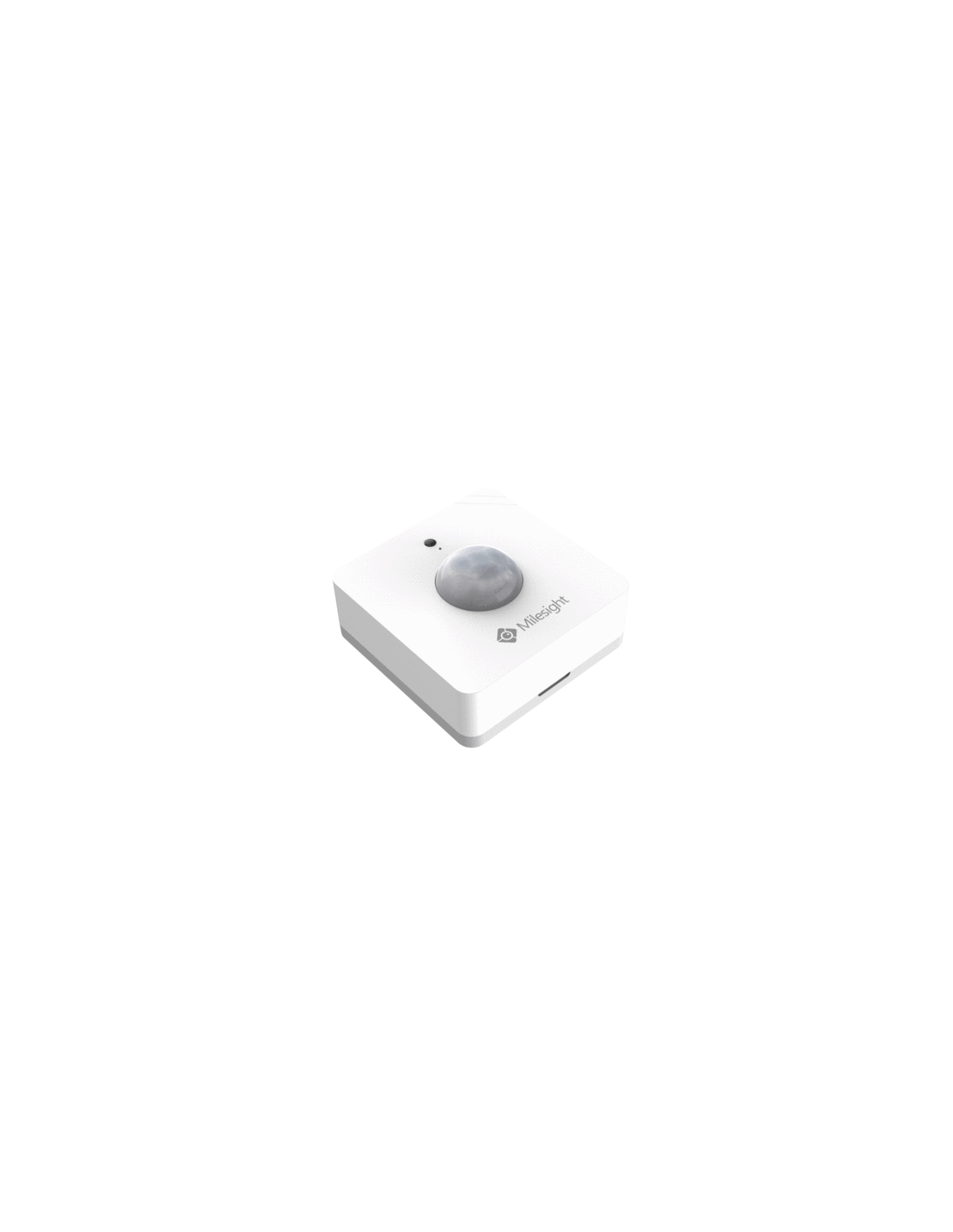

PIR and Light Sensor Certified LoRaWAN®
Experience unparalleled convenience with the Milesight WS202, a certified LoRaWAN sensor that accurately detects human presence and measures light levels in any room. Its LoRaWAN connectivity enables real-time data monitoring and analysis, ensuring a responsive and efficient environment.
Precision Human Presence Detection

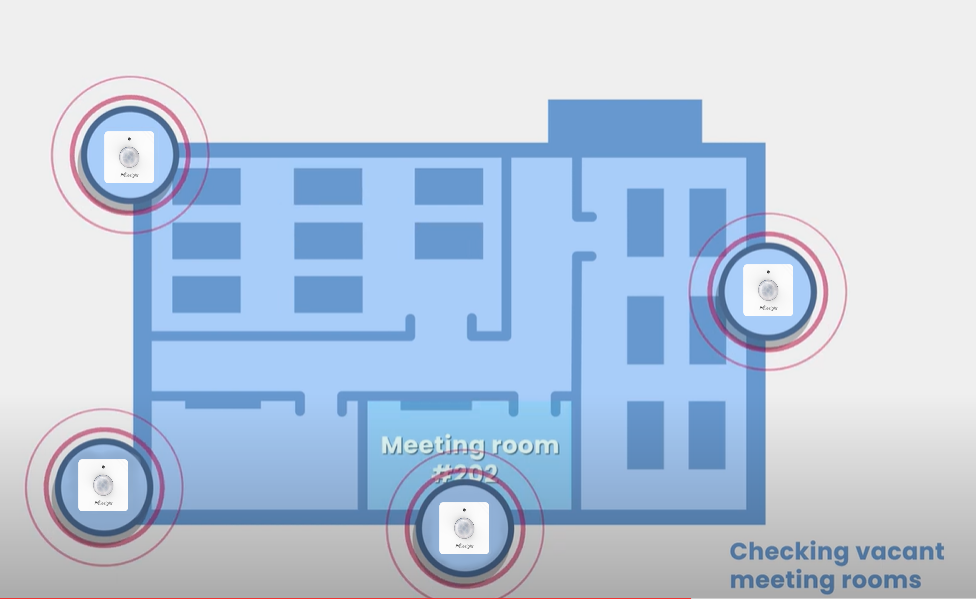

Using PIR motion detection technology, the WS202 effortlessly identifies the occupancy status in indoor spaces, providing accurate data for energy saving and security purposes.

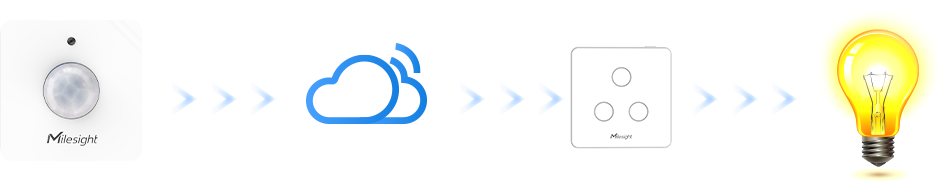

Intelligent Lighting Control Integration
Enhance your lighting system by integrating the Milesight WS202 with the Milesight Smart Switch or other LoRaWAN® lighting control devices. Enjoy intelligent, automatic lighting adjustments that respond to room occupancy and ambient light levels.
Wide Range Detection
Maximize coverage with an impressive detection range of 120° horizontally, 100° vertically, and up to 8 meters away. The WS202 ensures complete coverage of any indoor space, improving the overall effectiveness of your sensor network.
High-Resolution Brightness Detection
The WS202 is equipped with a high-resolution 1 lux sensor, capable of measuring brightness levels from 1 to 60,000 lux. This precise measurement allows for customized threshold settings, ensuring optimal lighting conditions in any environment.
Specifications
| Feature | Details |
|---|---|
| Wireless Communication Technology | LoRaWAN® |
| Frequencies | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| PIR Detection Area | 120° Horizontal, 100° Vertical |
| PIR Detection Distance | Maximum of 8 m |
| Light Sensor | Bright/Dark (1-60000 lux adjustable threshold) |
| Configuration | NFC setup via mobile app |
| Power Supply | 1 x 1650 mAh ER14335 Li-SOCl2 battery |
| Battery Life | Approximately 4 years (30 activations/day) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | ≤90% (non-condensing) |
| Ingress Protection | IP30 |
| Dimensions | 50 × 50 × 23.8 mm (1.97 x 1.97 x 0.94 in) |
| Material & Color | White, Anti-flaming polycarbonate |
| Installation | Flat surfaces with 3M tape or screws |
| Product Certification | CE, FCC, RoHS |
