Description
The LEV’O+ Liquid Level solution is used to determine the level of a tank, cistern, or cavity, accurately monitoring variations in liquid level without requiring knowledge of its geometric dimensions. By measuring the relative pressure of the liquid (water, fuel, oil, liquid fertilizer, etc.), LEV’O+ transmits the data via a public or private LoRaWAN® radio network, allowing the application to establish the relationship between the analog value and the liquid height.
Characteristics
Easy to implement and use
Plug & play with TORAN’O device (not included)
Power supply for the probe provided by TORAN’O during the measurement period

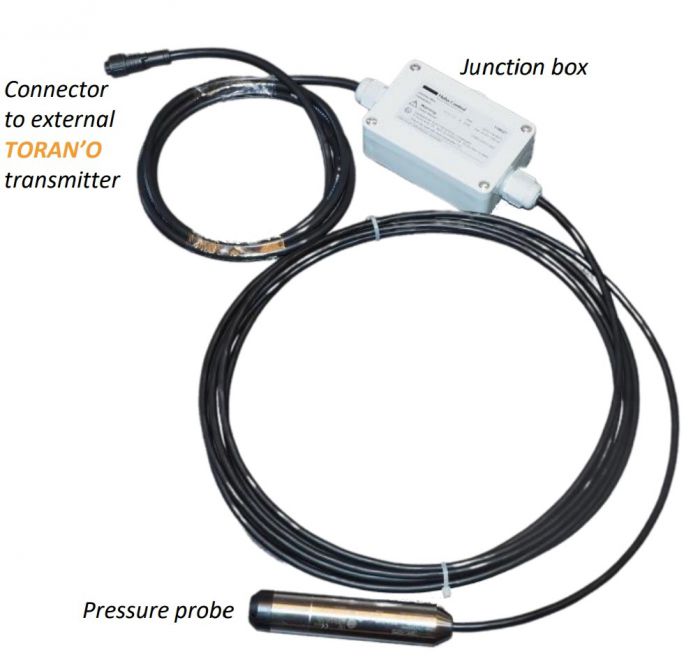

Remote level measuring probe on 5 m cable:
– Pressure range: 0…0.3 bar
– Accuracy: +/- 0.8% of full scale
– Resolution: 0.1% of full scale
– Sensor current: 4-20 mA
– Suitable for installation in 1 inch pipe
